無線通信可視化・安定化ソリューション
Tbridge® 《ティーブリッジ》
Specifications

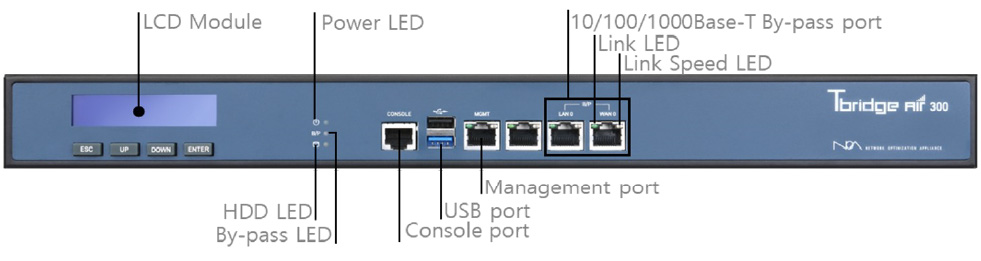

Tbridge Air300-B Model

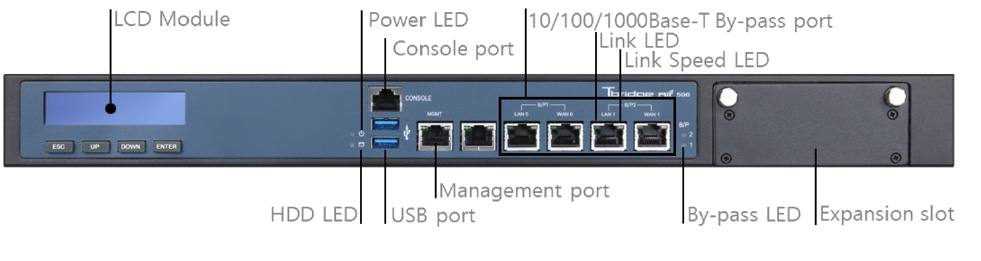

Tbridge Air 500-B / 1000-B Model
| Model | TBRIDGE 300 | TBRIDGE 500 | TBRIDGE 1000 |
|---|---|---|---|
| Throughput | 1 Gbps | 1 Gbps | 1 Gbps |
| TCP Connections | 200,000 | 400,000 | 500,000 |
| Data Storage Capacity (SSD) | 250GB | 250GB | 250GB |
| Memory | 8GB | 16GB | 16GB |
| Onboard Bypass ports(Copper) | 2 ports(10/100/1000Mbps) | 4Port(10/100/1000Mbps) | 4Port(10/100/1000Mbps) |
| Onboard Non-Bypass ports(Copper) | 2 ports(10/100/1000Mbps) | 2 ports(10/100/1000Mbps) | 2 ports(10/100/1000Mbps) |
| Fiber Bypass port(Option) | 2 ports 1GbE SFP | 2 ports 1GbE SFP | |
| 10Gbps Bypass Ports(Option) | 2 ports 10GbE SFP | 2 ports 10GbE SFP |
| Model Number | TBA300-AD-B | TBA500-AD-B | TBA1000-AD-B |
|---|---|---|---|
| Bridge Port | 2 ports (10/100/1000Mbps) | 4 ports (10/100/1000Mbps) | 4 ports (10/100/1000Mbps) |
| Non-Bridge Port | 2 ports (10/100/1000Mbps) | 2 ports (10/100/1000Mbps) | 2 ports (10/100/1000Mbps) |
| Serial Interface | 1 port | 1 port | 1 port |
| Management USB Port | 2 port | 2 port | 2 port |
| External Dimensions W (mm) x D (mm) x H (mm) | 438(W) x 225(D) x 44(H) | 438(W) x 292(D) x 44(H) | 438(W) x 292(D) x 44(H) |
| Weight | 2.7kg | 5kg | 5kg |
| Power Supply | AC100V-240V | AC100V-240V | AC100V-240V |
| Power Consumption | Max 40W | Max 150W | Max 150W |
| Operating Temperature | 0–40°C (32–104°F) | 0–40°C (32–104°F) | 0–40°C (32–104°F) |
| Operating Humidity | 20%-80%RH | 20%-80%RH | 20%-80%RH |
